Высокоплотный GPON OLT в формате 'Пицца-бокс

Серия BDCOM GP3600 соответствует стандартам ITU-T G.984/G.988 и удовлетворяет требованиям к GPON OLT в технических требованиях сетевого доступа. Полностью поддерживает CTC2.0, автоматическое обнаружение и сотрудничество с ONU различных производителей.

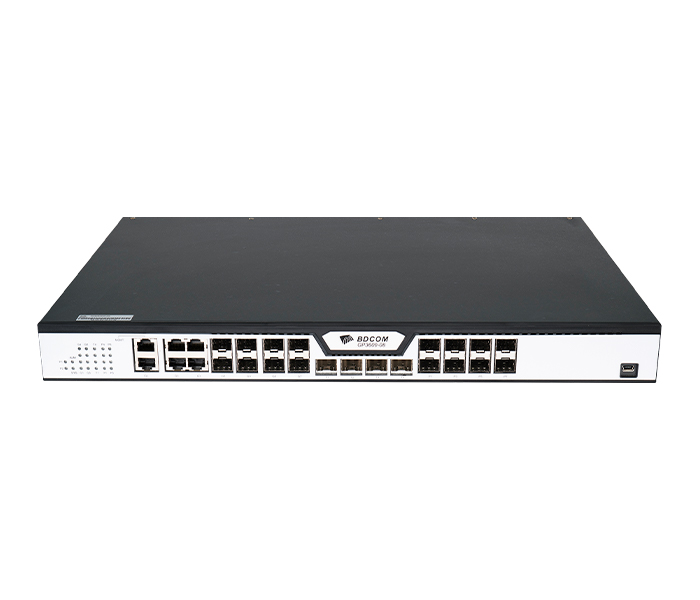

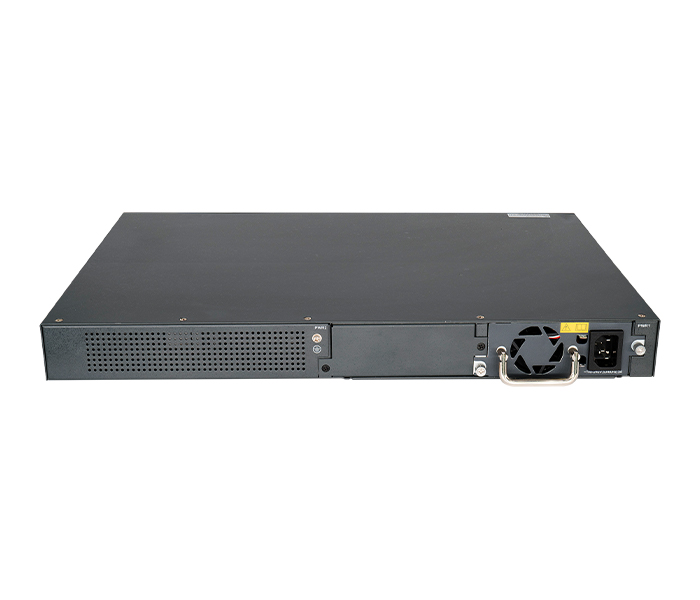

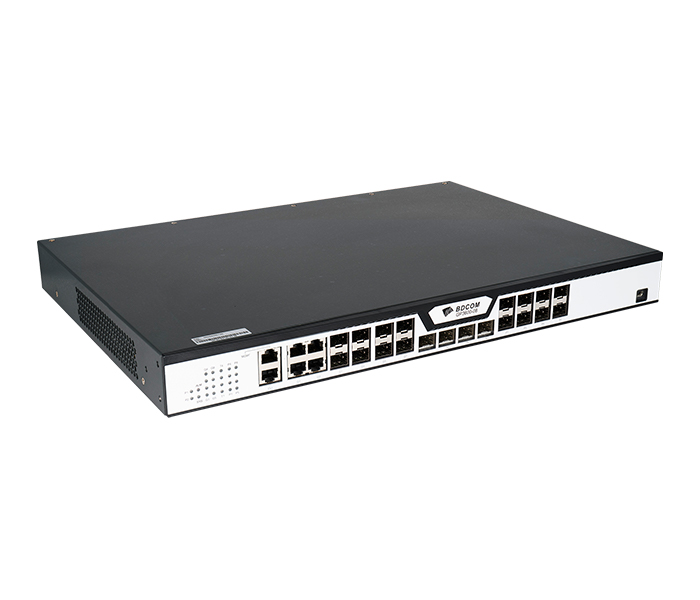

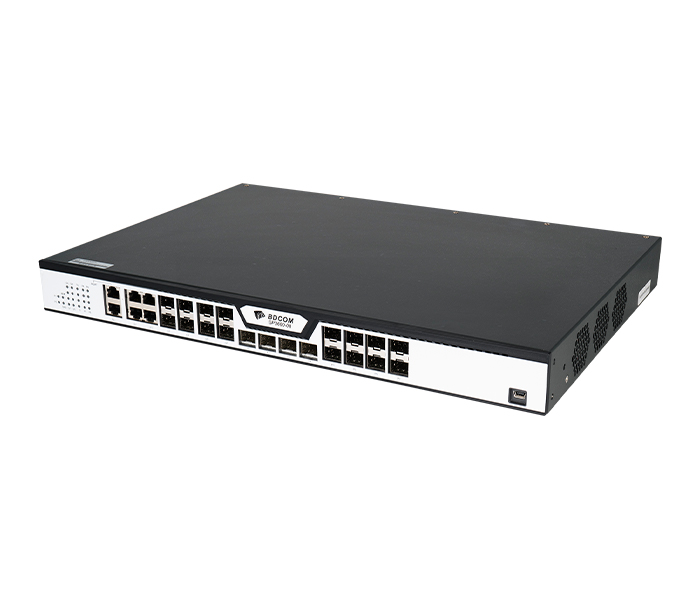

GP3600-08

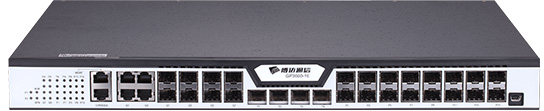

GP3600-16

Основные характеристики

Поддерживает 8/16 портов GPON

1U, занимает мало места

Низкое энергопотребление и низкая стоимость эксплуатации

Серия GP3600 оснащена максимум 4 портами GE SFP, 4 комбинированными портами GE и 4 портами 10GE SFP+.

КОНСУЛЬТАЦИЯ

Технические Параметры

GP3600-08 GP3600-16
PON ports 8
GE uplink 4 100/1000M SFP + 4 GE SFP/TX
10GE uplink 4 10G E SF P+
Supported GPON SFP module Class B+, Class C+, Class C++, Class C+++
RJ45 console 1
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 1024
Flash (MB) 32
Backplane (Gbps) 176
MAC table 40K
Buffer size (MB) 3
Jumbo frame (KB) 9
IPv4 routing table 32K
IPv6 routing table 8K
Active VLAN 4,094
SVI number 512
Forwarding mode Store-and-forward
AC (V) 90 ~ 264
DC (V) 36~72
Power slots 2
Max. consumption (W) 60
Total output BTU (note: 1000 BTU/hr = 293W) 204.8
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 442.5 x 304 x 44
Weight (Kg)(empty) 5.5
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 6.4
Operating
Temperature 0~50°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord rackmount kits console cable
MTBF (Hr) 95,000
Certification CE, FCC, ROHS
PON ports 16
GE uplink 4 100/1000M SFP + 4 GE SFP/TX
10GE uplink 4 10GE SFP+
Supported GPON SFP module Class B+, Class C+, Class C++, Class C+++
RJ45 console 1
Mini-USB console 1
Out-of-Band 1
DRAM (MB) 1024
Flash (MB) 32
Backplane (Gbps) 176
MAC table 40K
Buffer size (MB) 3
Jumbo frame (KB) 9
IPv4 routing table 32K
IPv6 routing table 8K
Active VLAN 4,094
SVI number 512
Forwarding mode Store-and-forward
AC (V) 90 ~ 264
DC (V) 36~72
Power slots 2
Max. consumption (W) 70
Total output BTU (note: 1000 BTU/hr = 293W) 238.9
Fan number 3
Air-flow Left-right
Noise@25°C(dBA) < 45
Chassis
Dimensions(WxDxH mm) 442.5 x 304 x 44
Weight (Kg)(empty) 5.6
Package
Dimensions(WxDxH mm) 576 x 448 x 94
Weight (Kg) 6.5
Operating
Temperature 0~50°C
Humidity (non-condensing ) 10%~85%
Storage
Temperature -40°C-80°C
Humidity (non-condensing ) 5%-95%
Parts Power cord rackmount kits console cable
MTBF (Hr) 95,000
Certification CE, FCC, ROHS

Особенности

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP), Ethernet - II

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Hot swap of the GPON optical module

Optical path protection of GPON (type B/C, hand-in-hand)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCPSYN- flood, UDP-flood, ARPflood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Информация для Заказа

GP3600 Series
BDCOM GP3600-08 GPON OLT with 8 PON ports (1 console port, 1 out-band 10/100M port, 8 fixed PON ports (excluding the OLT SFP module), 4 GE SFP ports, 4 GE TX/SFP combo ports, 4 10GE SFP+ ports; 2 power slots with 1 hot-swap AC220V power supply; 19-inch rack-mounted installation)
BDCOM GP3600-08-DC GPON OLT with 8 PON ports (1 console port, 1 out-band 10/100M port, 8 fixed PON ports (excluding the OLT SFP module), 4 GE SFP ports, 4 GE TX/SFP combo ports, 4 10GE SFP+ ports; 2 power slots with 1 hot-swap DC36~72V power supply; 19- inch rack-mounted installation)
BDCOM GP3600-16 GPON OLT with 16 PON ports (1 console port, 1 out-band 10/100M port, 16 fixed PON ports (excluding the OLT SFP module), 4 GE SFP ports, 4 GE TX/SFP combo ports, 4 10GE SFP+ ports; 2 power slots with 1 hot-swap AC220V power supply; 19-inch rack-mounted installation)
BDCOM GP3600-16-DC GPON OLT with 16 PON ports (1 console port, 1 out-band 10/100M port, 16 fixed PON ports (excluding the OLT SFP module), 4 GE SFP ports, 4 GE TX/SFP combo ports, 4 10GE SFP+ ports; 2 power slots with 1 hot-swap DC36~72V power supply; 19-inch standard rack-mounted installation)
Power modules
PWR-75-DC Hot-swap DC power supply for OLT (Max Power 75W, DC-36 ~ -72V input)
PWR-75-AC Hot-swap AC power supply for OLT (Max Power 75W, AC100~240V input)
Optical modules
OLT-GSFP-B+ OLT SFP module, Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C+ OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C++ OLT SFP module, Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
